Fusion
Please Contact Us For A Price
Rear wheel drive with high functionality
For a free, no obligation assessment contact us now
Description

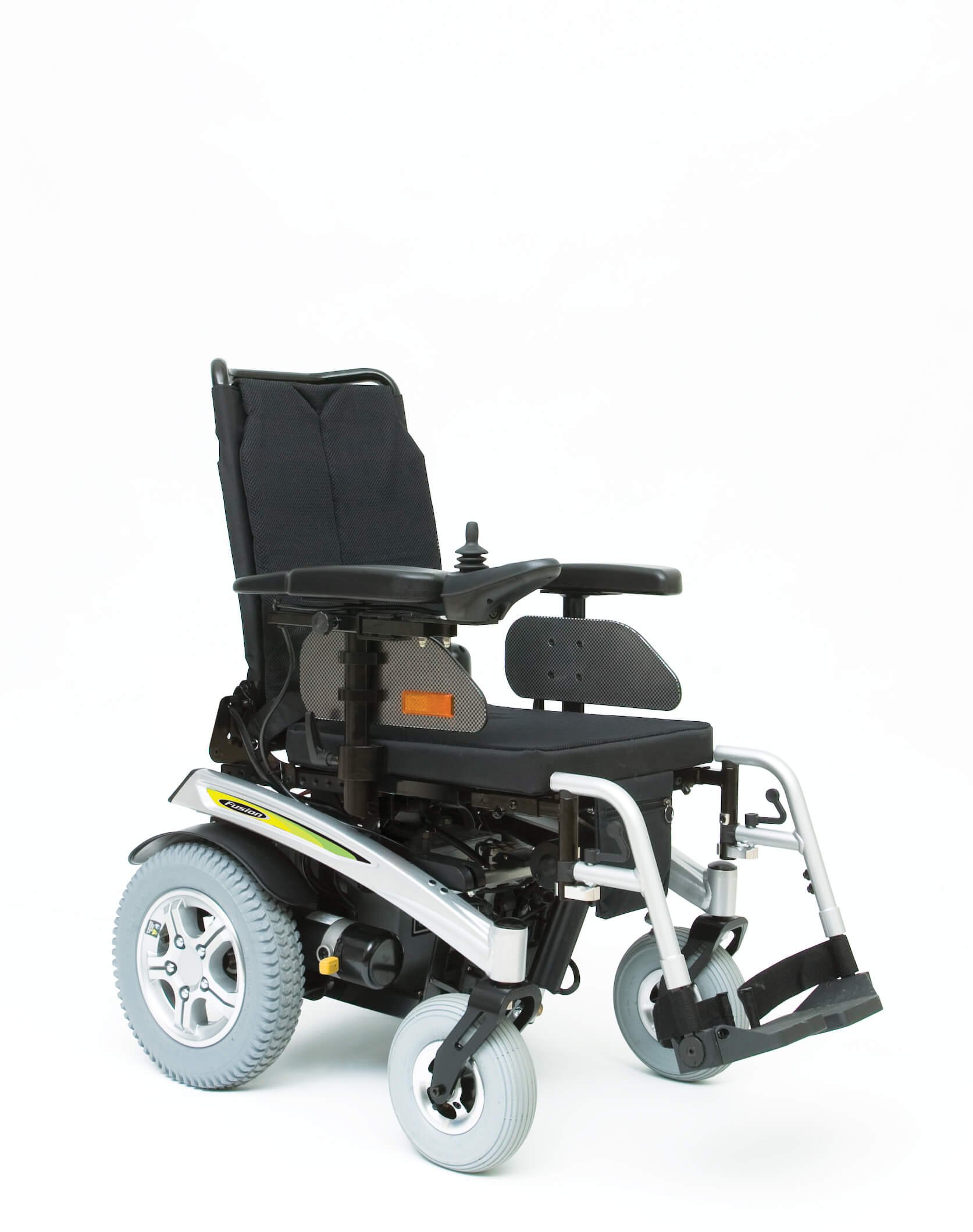

The Pride® Fusion from the 'Jazzy Power Chair' range is a rear-wheel drive power chair, which delivers exceptional control, with a maximum speed of up to 4 mph (6.4 km/h).
Available with Power Tilt and Manual Recline and Power Tilt and Power Recline
The innovative, compact design of the Fusion makes it highly manoeuvrable in tight spaces without sacrificing traditional rear-wheel drive performance.
Available colours
Silver
Features
Rear Wheel Drive System- Provides great control even at fast speeds and offer excellent stability even on rough terrain.
Interchangeable Decal Panels – Personalise your Pride Fusion with 3 different colour decal sets.
Ion Seating – Both configurations of the Fusion come a standard with the comfortable Ion seating system.
Specification
Weight Capacity: 21 st (136 kg)
Maximum Speed: 4 mph (6.4 km/h)
Ground Clearance: 73mm (2.8")
Overall Length: 890 mm (35")
Overall Width: 635 mm (21")
Turning Radius: 530 mm (21")
Standard Controls: PG VR2 controller
Total Weight (without batteries): 74 kg
Seating: Tension-adjustable, sling back plus solid seat pan
Tyres: Front: 230 mm (9”) pneumatic Rear: 355 mm (21”) pneumatic
Suspension: Rear-wheel drive
Battery Requirements: 2x 50 Ah Deep - Cycle
Battery Weight (each): 17 kg
Note
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %.
2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure.
3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
